pygmt.Figure

class pygmt.Figure

A GMT figure to handle all plotting.

Use the plotting methods of this class to add elements to the figure. You can preview the figure using pygmt.Figure.show and save the figure to a file using pygmt.Figure.savefig.

Examples

>>> import pygmt
>>> fig = pygmt.Figure()
>>> fig.basemap(region=[0, 360, -90, 90], projection="W15c", frame=True)
>>> fig.savefig("my-figure.png")
>>> # Make sure the figure file is generated and clean it up
>>> from pathlib import Path
>>> assert Path("my-figure.png").exists()
>>> Path("my-figure.png").unlink()

The plot region can be specified through ISO country codes (for example, "JP" for Japan):

>>> import pygmt
>>> fig = pygmt.Figure()
>>> fig.basemap(region="JP", projection="M7c", frame=True)
>>> # The fig.region attribute shows the WESN bounding box for the figure
>>> print(", ".join(f"{i:.2f}" for i in fig.region))
122.94, 145.82, 20.53, 45.52

Attributes

property Figure.region: ndarray

The geographic WESN bounding box for the current figure.

Methods Summary

Figure.basemap([projection, verbose, panel, ...])	Plot base maps and frames.
Figure.coast([projection, resolution, box, ...])	Plot continents, countries, shorelines, rivers, and borders.
Figure.colorbar([projection, box, verbose, ...])	Plot gray scale or color scale bar.
Figure.contour([data, x, y, z, no_clip, ...])	Contour table data by direct triangulation.
Figure.grdcontour(grid[, projection, ...])	Make contour map using a grid.
Figure.grdimage(grid[, monochrome, no_clip, ...])	Project and plot grids or images.
Figure.grdview(grid[, projection, verbose, ...])	Create 3-D perspective image or surface mesh from a grid.
Figure.histogram(data[, projection, ...])	Calculate and plot histograms.
Figure.hlines(y[, xmin, xmax, pen, label, ...])	Plot one or multiple horizontal line(s).
Figure.image(imagefile[, projection, box, ...])	Plot raster or EPS images.
Figure.inset([projection, box, no_clip, verbose])	Manage figure inset setup and completion.
Figure.legend([spec, projection, position, ...])	Plot a legend.
Figure.logo([projection, style, box, ...])	Plot the GMT logo.
Figure.meca(spec, scale[, convention, ...])	Plot focal mechanisms.
Figure.plot([data, x, y, size, symbol, ...])	Plot lines, polygons, and symbols in 2-D.
Figure.plot3d([data, x, y, z, size, symbol, ...])	Plot lines, polygons, and symbols in 3-D.
Figure.psconvert([prefix, dpi, gs_option, ...])	Convert [E]PS file(s) to other formats using Ghostscript.
Figure.rose([data, length, azimuth, ...])	Plot a polar histogram (rose, sector, windrose diagrams).
Figure.savefig(fname[, transparent, crop, ...])	Save the figure to an image file.
Figure.set_panel([panel, verbose])	Set the current subplot panel to plot on.
Figure.shift_origin([xshift, yshift])	Shift the plot origin in x- and/or y-directions.
Figure.show([method, dpi, width, waiting])	Display a preview of the figure.
Figure.solar([terminator, ...])	Plot day-night terminators and other sunlight parameters.
Figure.subplot([nrows, ncols, projection, ...])	Manage figure subplot configuration and selection.
Figure.ternary(data[, alabel, blabel, ...])	Plot data on ternary diagrams.
Figure.text([textfiles, x, y, position, ...])	Plot or typeset text.
Figure.tilemap(region[, zoom, source, ...])	Plot an XYZ tile map.
Figure.timestamp([text, label, justify, ...])	Plot the GMT timestamp logo.
Figure.velo([data, no_clip, projection, ...])	Plot velocity vectors, crosses, anisotropy bars, and wedges.
Figure.vlines(x[, ymin, ymax, pen, label, ...])	Plot one or multiple vertical line(s).
Figure.wiggle([data, x, y, z, fillpositive, ...])	Plot z=f(x,y) anomalies along tracks.

Examples using pygmt.Figure

Plotting a surface

Plotting a surface

3-D scatter plots

3-D scatter plots

Double Y-axes graph

Double Y-axes graph

Ternary diagram

Ternary diagram

Colorbar

Colorbar

Multiple colormaps

Multiple colormaps

GMT logo

GMT logo

Inset

Inset

Inset map showing a rectangular region

Inset map showing a rectangular region

Legend

Legend

Scale bar

Scale bar

Day-night terminator and twilights

Day-night terminator and twilights

Text formatting

Text formatting

Timestamp

Timestamp

Blockmean

Blockmean

Histogram

Histogram

Rose diagram

Rose diagram

Scatter plot with histograms

Scatter plot with histograms

Contours

Contours

Cross-section along a transect

Cross-section along a transect

Clipping grid values

Clipping grid values

Calculating grid gradient and radiance

Calculating grid gradient and radiance

Calculating grid gradient with custom azimuth and normalize parameters

Calculating grid gradient with custom azimuth and normalize parameters

Create ‘wet-dry’ mask grid

Create 'wet-dry' mask grid

Image on a figure

Image on a figure

RGB image

RGB image

Sampling along tracks

Sampling along tracks

Connection lines

Connection lines

Decorated lines

Decorated lines

Envelope

Envelope

Generate points along great circles

Generate points along great circles

Horizontal and vertical lines

Horizontal and vertical lines

Line colors with a custom CPT

Line colors with a custom CPT

Line segment caps and joints

Line segment caps and joints

Line fronts

Line fronts

GeoPandas: Plotting lines with LineString or MultiLineString geometry

GeoPandas: Plotting lines with LineString or MultiLineString geometry

Line styles

Line styles

Quoted lines

Quoted lines

Vector heads and tails

Vector heads and tails

Cartesian, circular, and geographic vectors

Cartesian, circular, and geographic vectors

Wiggle along tracks

Wiggle along tracks

Political boundaries

Political boundaries

Choropleth map

Choropleth map

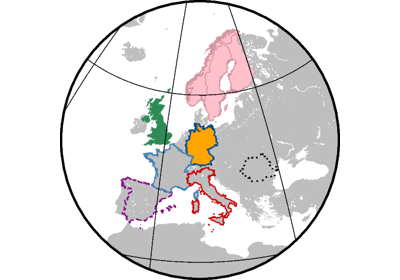

Highlight country, continent and state polygons

Highlight country, continent and state polygons

EPSG codes

EPSG codes

Color land and water

Color land and water

Shorelines

Shorelines

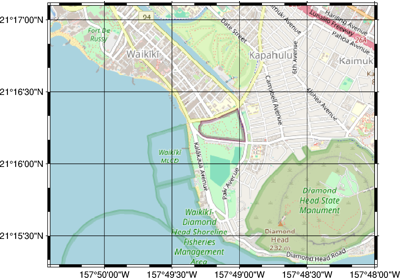

Tile maps

Tile maps

Focal mechanisms

Focal mechanisms

Velocity arrows and confidence ellipses

Velocity arrows and confidence ellipses

Vertical or horizontal bars

Vertical or horizontal bars

Basic geometric symbols

Basic geometric symbols

Custom symbols

Custom symbols

Datetime inputs

Datetime inputs

Multi-parameter symbols

Multi-parameter symbols

Bit and hachure patterns

Bit and hachure patterns

Points

Points

Color points by categories

Color points by categories

Points with varying transparency

Points with varying transparency

Scatter plots with a legend

Scatter plots with a legend

Text symbols

Text symbols

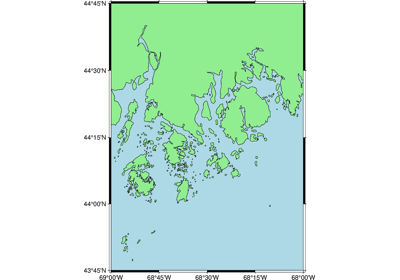

1. Making your first figure

1. Making your first figure

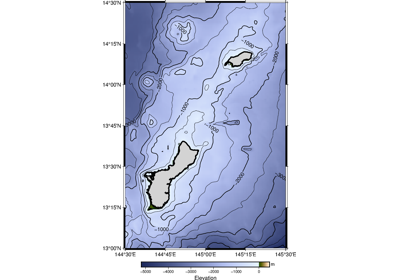

2. Create a contour map

2. Create a contour map

3. Figure elements

3. Figure elements

4. PyGMT I/O: Table inputs

4. PyGMT I/O: Table inputs

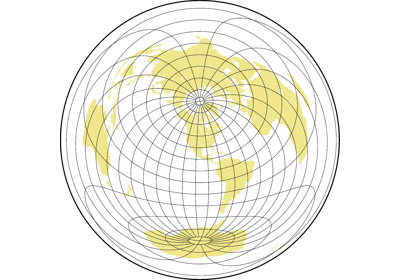

Azimuthal equidistant projection

Azimuthal equidistant projection

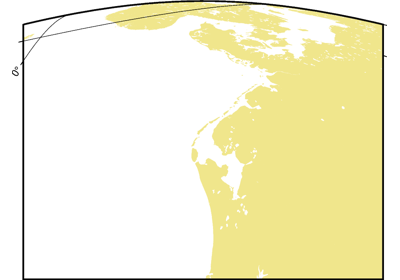

Perspective projection

Perspective projection

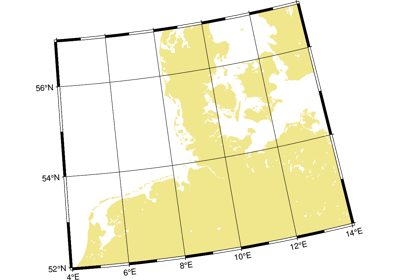

General stereographic projection

General stereographic projection

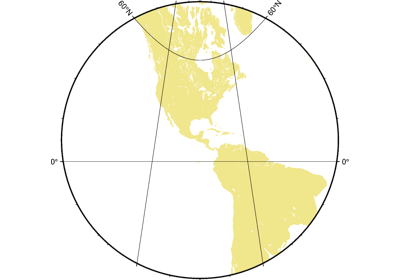

Gnomonic projection

Gnomonic projection

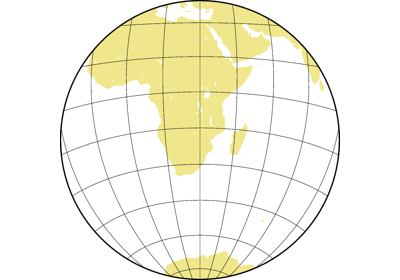

Lambert azimuthal equal-area projection

Lambert azimuthal equal-area projection

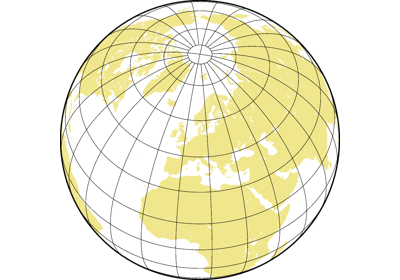

Orthographic projection

Orthographic projection

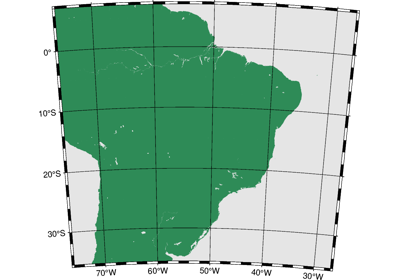

Albers conic equal-area projection

Albers conic equal-area projection

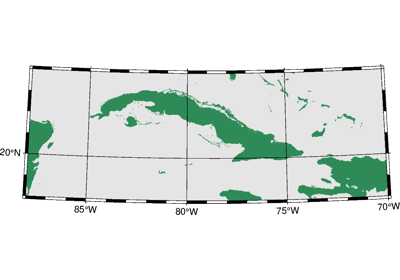

Equidistant conic projection

Equidistant conic projection

Lambert conic conformal projection

Lambert conic conformal projection

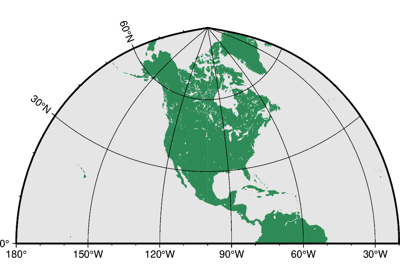

Polyconic projection

Polyconic projection

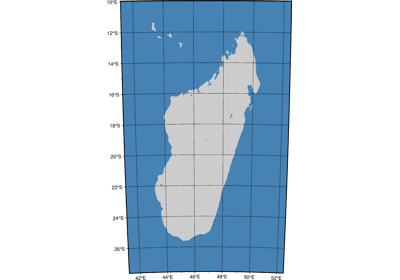

Cassini cylindrical projection

Cassini cylindrical projection

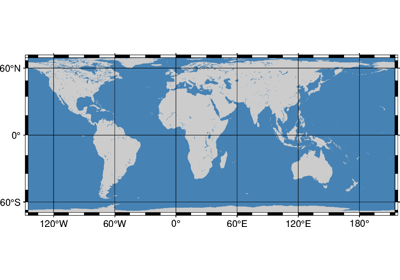

Cylindrical equal-area projection

Cylindrical equal-area projection

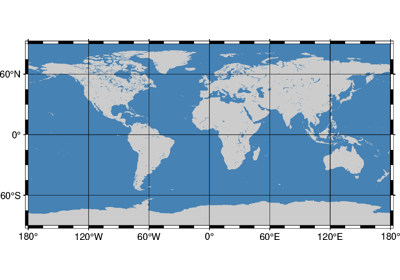

Cylindrical equidistant projection

Cylindrical equidistant projection

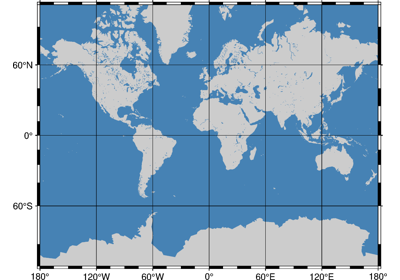

Mercator projection

Mercator projection

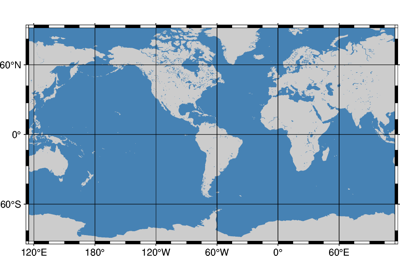

Miller cylindrical projection

Miller cylindrical projection

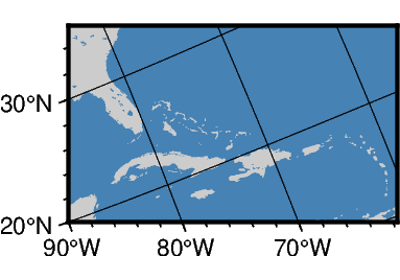

Oblique Mercator projection

Oblique Mercator projection

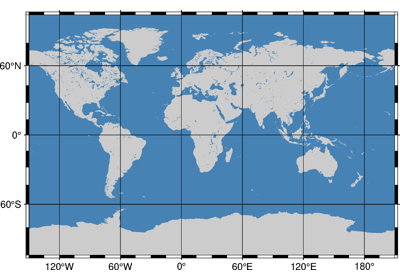

Cylindrical stereographic projection

Cylindrical stereographic projection

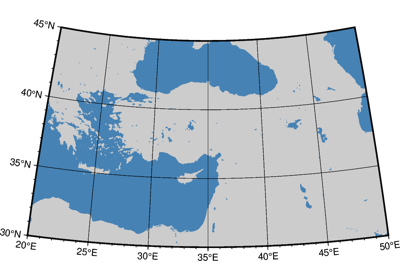

Transverse Mercator projection

Transverse Mercator projection

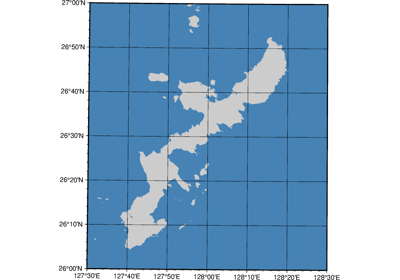

Universal Transverse Mercator projection

Universal Transverse Mercator projection

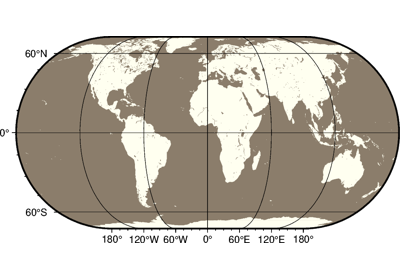

Eckert IV equal-area projection

Eckert IV equal-area projection

Eckert VI equal-area projection

Eckert VI equal-area projection

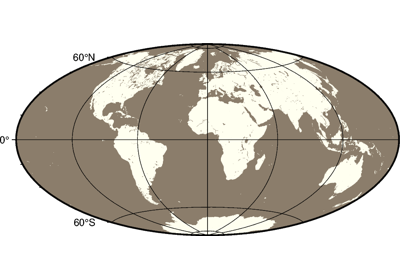

Hammer projection

Hammer projection

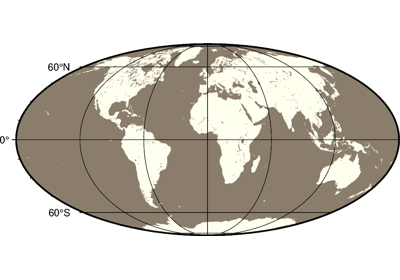

Mollweide projection

Mollweide projection

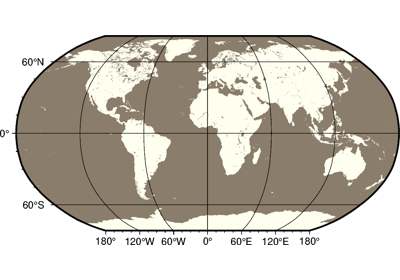

Robinson projection

Robinson projection

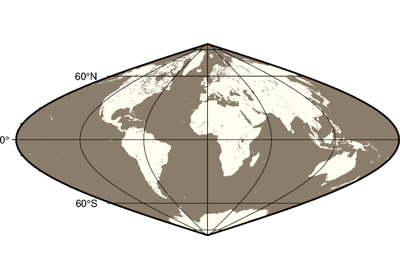

Sinusoidal projection

Sinusoidal projection

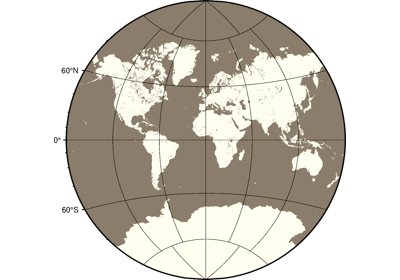

Van der Grinten projection
